Surfaces

Create Surface

0:39

Surface Calculator

0:31

Surface Dreamer

0:30

Surface Explorer

0:30

Create Surface

A gridded structure surface in 3-D, contoured and labelled, the high shaded brown and the lows blue.

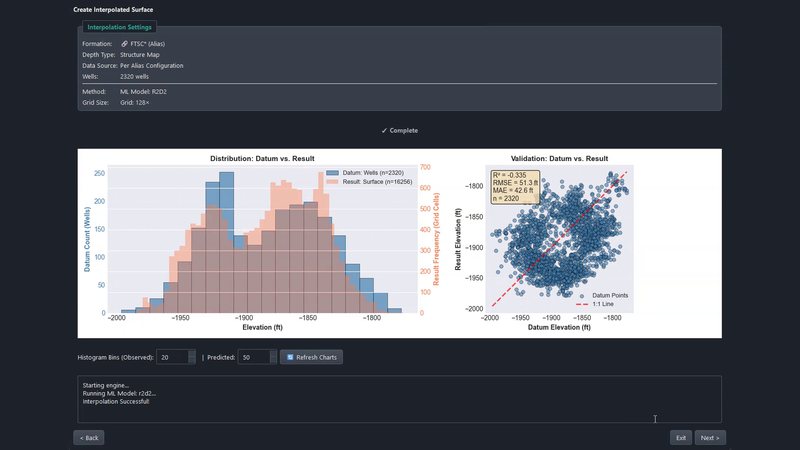

The interpolation result panel after an ML gridding run: a datum-versus-result histogram beside a 1:1 validation scatter with R², RMSE and MAE.

Create Many Surfaces

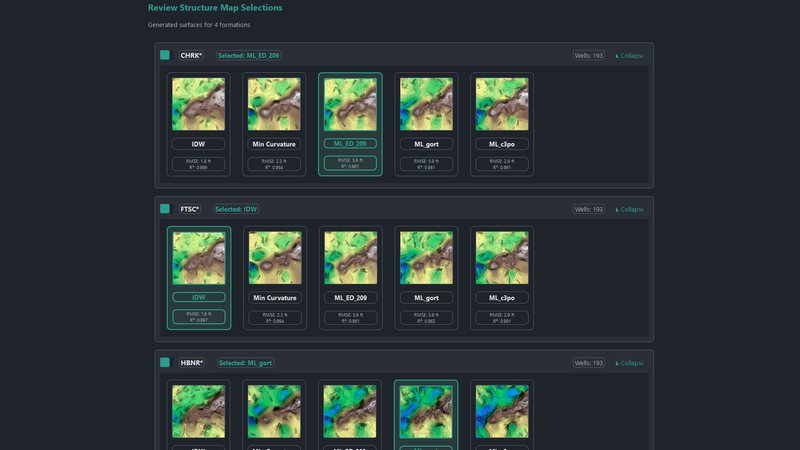

Review Structure Map Selections: each formation gridded by IDW, minimum curvature and three ML models side by side, RMSE and R² under each, one chosen per formation.

Surface Polisher

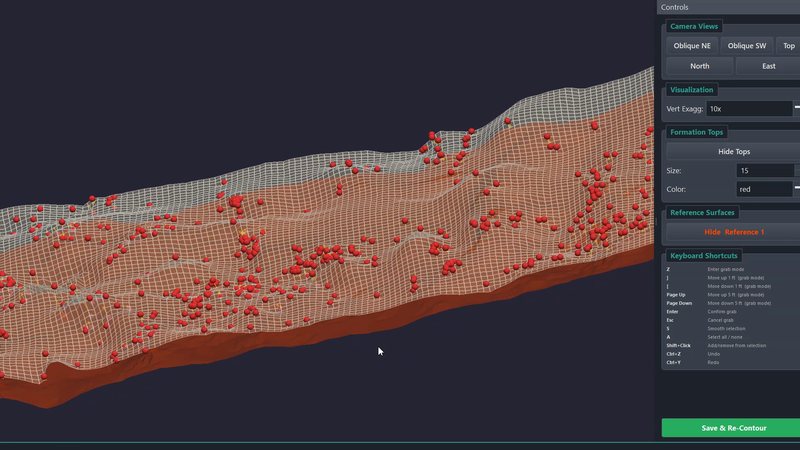

Surface Polisher: an editable node mesh over a reference surface, formation tops pinned in red.

Surface Calculator

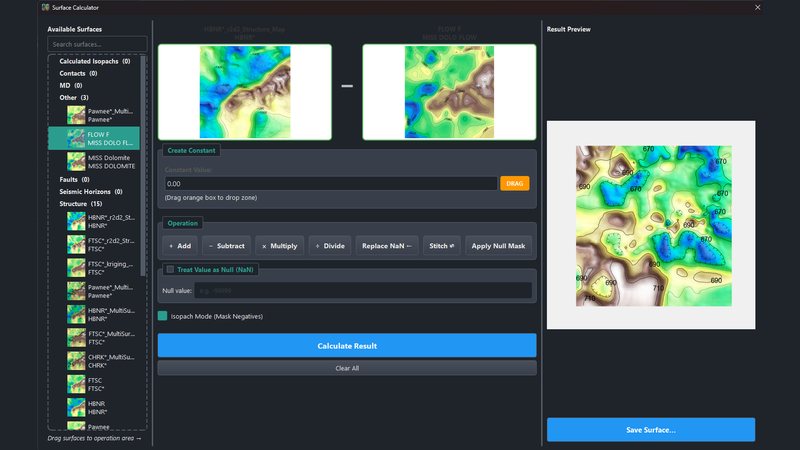

The Surface Calculator: two structure surfaces dropped in as operands with Subtract between them, and the contoured result in the preview.
